Water Monitoring Methods for the Madison River near West Yellowstone, Montana

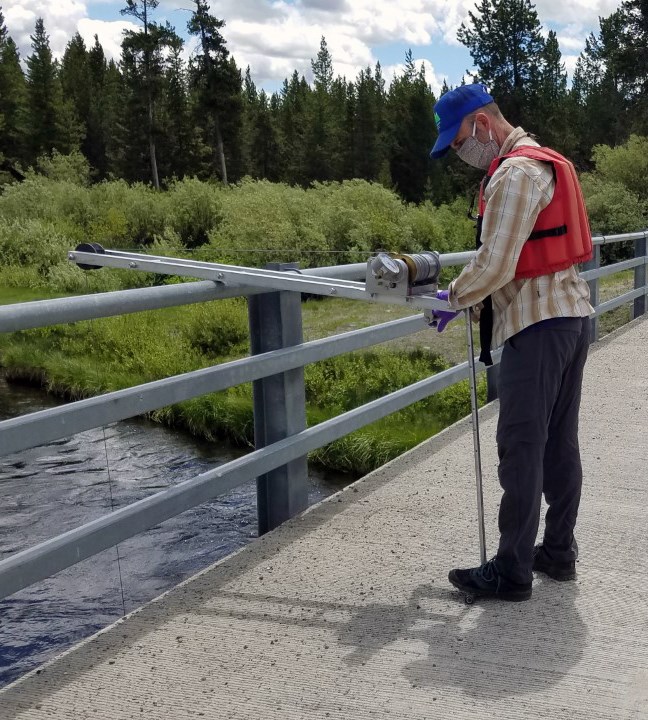

A person on a bridge operating a metal bridge board that has a reel with a sampler hooked to it
A bridge-board, reel, and DH-95 suspension sampler are used to collect water samples when the river is non-wadeable. This photograph is from the Madison River near West Yellowstone, Montana.

NPS

Water Chemistry

The Greater Yellowstone Inventory and Monitoring Network collects water samples monthly during ice-free periods generally following depth and width-integrated protocols outlined in the U.S. Geological Survey (USGS) National Field Manual for the Collection of Water-Quality Data.

In wadeable depths, we use a 1-L, hand-held DH-81 sampler affixed to a 1-m wading rod to collect depth and width-integrated water samples. During non-wadeable flows, samples are collected from a bridge using a bridge-board or crane, reel, and DH-95 suspension sampler. At multiple locations along a cross-section of the river, we collect water using vertically integrated sampling techniques. Samples from the 1-L bottle are mixed into an 8-L churn splitter; we use the churn splitter to homogenize and dispense a representative subsample into laboratory-provided bottles. These bottles are then shipped overnight to an EPA-certified commercial lab for processing.

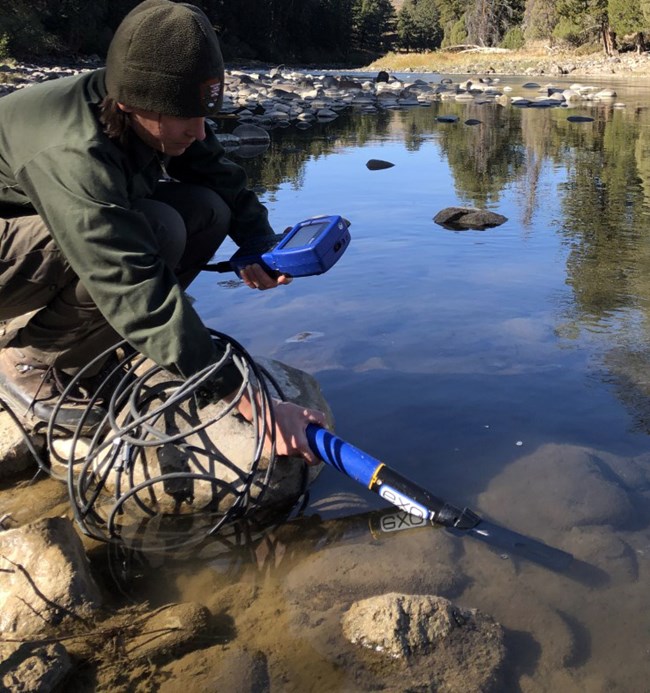

A person crouched down by flowing water holding water quality equipment.
A handheld, multi-parameter instrument is used to collect water quality parameters: temperature, specific conductance, dissolved oxygen, pH, and turbidity. This photograph was taken on the Lamar River in Yellowstone National Park.

NPS

Core Water Quality Parameters

In addition to water samples, water quality parameters (temperature, specific conductance, dissolved oxygen, pH, and turbidity) are collected in situ using a handheld, multi-parameter instrument (e.g., YSI EXO 1 sonde) at four representative locations on the river cross-section. Collection of water sample core parameters and rationale for testing nutrients and suspended solids is described in the approved Greater Yellowstone Network Regulatory Water Quality Monitoring Protocol (O'Ney 2006).

River Discharge

Discharge (river flow estimates) and water temperature data from the Madison River sampling location are available online from the U.S. Geological Survey's National Water Information System and listed under station USGS 06037500. This station is located east of West Yellowstone, MT.

Greater Yellowstone Network Water Resources Protocols

Read the full protocols and standard operating procedures for water quality and discharge by clicking on the bar below.

Source: Data Store Collection 7853. To search for additional information, visit the Data Store.
