Fort Tryon Park: Preliminary Plans

The landscape architect used notes from site visits and topographical surveys to draft a preliminary plan. Certain projects, depending on scale, required several early plans and sketches before the landscape architect and client settled on a design.

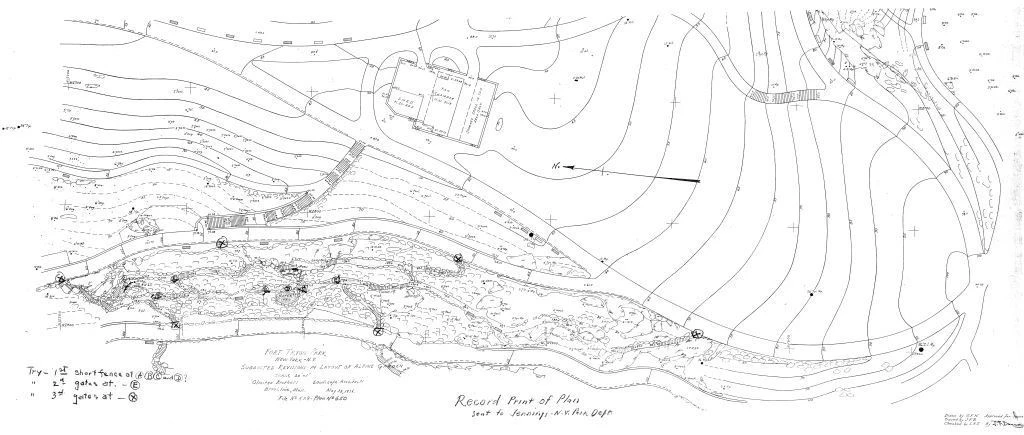

Early plan of Fort Tryon Park with notations and revisions.

Olmsted Archives, Job #00529



Early sketch showing playgrounds for Fort Tron Park

Olmsted Archives, Job #00529



After a client had reviewed and approved a preliminary plan, the firm's draftsmen drew general plans.
