Geological Survey Bulletin 611
Guidebook of the Western United States: Part A
|
ITINERARY
|

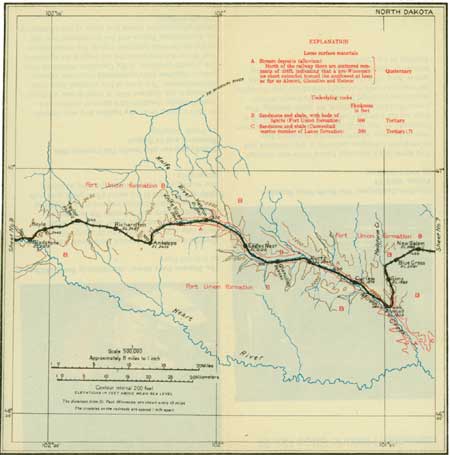

SHEET No. 8.
(click on image for an enlargement in a new window)
|
New Salem.
Population 621.
St. Paul 479 miles.
|
About half a mile east of the station at New Salem
(see sheet 8, p. 60) the lignite mine of the Dakota Products Co. has
been in operation for a number of years. The bed of lignite mined is 5
feet thick and lies about 30 feet below the surface.2 West of
New Salem, which is situated on the surface of the upland plain, the
railway goes down a small ravine in which scattered granite bowlders can
be seen from the car window for a distance of 5 miles, or as far as
milepost 33. Beyond this point no bowlders can be seen, but careful
examination of the surrounding upland has shown that they are present as
far to the southwest as Almont.
2The lignite bed is reached by a slope,
and from the bottom of the slope the workings extend north about 2,100
feet. The lignite bed is almost horizontal. It ranges in thickness from
4-1/2 to 6 feet and is underlain by a bed of gray clay. Most of the
lignite produced at this mine is either hauled by wagon to the
surrounding country and used by the farmers or shipped by rail to the
neighboring towns. North Dakota lignite represents one of the early
stages in the transformation of vegetable matter into coal. The products
of the various stages now recognized are (1) wood, (2) peat, (3)
lignite, (4) subbituminous coal, (5) bituminous coal, (6) semibituminous
coal, (7) semianthracite, and (8) anthracite. Much of the lignite is
woody, and frequently logs and stumps are found in the mines. It is
generally brown, and the woody parts will bend without breaking. The
lignite of this State, as it comes from the mine, carries about 40 per
cent of water. It will readily dry down to 8 or 10 per cent if stored in
a dry place with good ventilation, but in so doing it shrinks and falls
to pieces. This falling to pieces is generally called slacking (from its
likeness to the slacking of lime, though lime slacks by taking up
moisture and lignite by parting with it), and the process takes place
rapidly where it is exposed to alternate moisture and dryness.
Manifestly a fuel containing 40 per cent of water can
not be shipped any great distance, as the purchaser can not afford to
pay transportation charges on so much water. The lignite is also
difficult to handle on account of the slacking or breaking up, and when
stored it is likely to ignite spontaneously by its rapid combination
with the oxygen of the atmosphere or of water. Altogether it is far from
an ideal fuel, though very useful for domestic purposes in this treeless
country. Although lignite is a poor fuel for raising steam, it is well
adapted to making producer gas that can be used economically in a gas
engine for the production of power, and probably in the future it will
be utilized largely in this way. The chief difficulty at present is that
there is only a small demand in this thinly settled country for power,
and hence there would be little market for the product, but it is
possible that with the growing use of long-distance transmission lines
the lignite could be utilized for the production of electric power at
the mine and the current carried to distant towns and cities or even to
ranches for utilization. Lignite has been found to be an excellent fuel
for burning brick and is now used extensively at Dickinson and other
towns in the State for that purpose.
Lignite occurs most abundantly in the Fort Union
formation (the lowest formation in the Eocene series of the Tertiary
system), which underlies almost all the western part of North Dakota. It
is estimated that the State contains the enormous amount of
697,900,000,000 short tons of lignite in beds over 3 feet thick and
within 1,000 feet of the surface, and it seems probable that there is
workable lignite within this limit under every section of the land in
the western part of the State. It is difficult to form an idea of a mass
containing even 1,000,000 tons, and hence the figures given above are
practically impossible of comprehension, but if the amount is put in the
form of a cube a better conception of its magnitude may be obtained. The
lignite of the State, if gathered into one mass in the compact form in
which it lies in the ground, would make a cube 5 miles long, 5 miles
broad, and 5 miles high. Such a cube would cover nearly a township of
land and would be almost as high as the highest mountain on the
globe.
The lignite, although of poor quality and at present
used only in a small way, constitutes a vast fuel resource which will in
time become of great value, not only to the individual citizens of the
State but to the corporations that are seeking power for use in
manufacturing or in transportation.
Sims.
Elevation 1,982 feet.
Population 86.
St. Paul 487 miles.
|
Some 10 years ago several lignite mines were in
operation at Sims, but now all but one of these are closed and
abandoned. The bed of lignite mined here is 7 or 8 feet thick, and in
drilling a deep well for water four other beds having thicknesses of
about 5 feet each were found. According to the log of this well there is
29 feet of lignite below the surface at Sims in beds thick enough to
work, and the lowest is at a depth of 710 feet.
Almont.
Elevation 1,933 feet.
Population 86.
St. Paul 492 miles.
|
Below Sims the railway follows the small valley of
Hailstorm Creek and affords no general view of the country. Just east of
Almont the valley of Hailstorm Creek joins that of Muddy Creek, which
the railway, making a sharp turn to the right, ascends practically to
its head. This valley shows excellent examples of stream meanders, the
creek making great loops whose ends in places nearly connect.
About 11 miles from Almont, at milepost 51, there are
on the right (north) about a mile distant many knobs and spurs having a
bright-red color. When examined closely the color is seen to run in more
or less regular horizontal bands, like the rock, but it is not
continuous, and in places it affects the whole hillside. This color is
due to the burning of beds of lignite, which has baked and reddened the
originally dark strata on either side, as clays originally brown or gray
in color turn red when burned into brick.1
1All through the lignite region and the
fields of low-grade coal of the Rocky Mountains and Great Plains the
coal beds have burned extensively along their outcrops, the resulting
red color giving a touch of brightness to some otherwise dull and
monotonous landscapes. In some places the burning has been just
sufficient to color the shale and sandstone to a bright red, but in
others, where the lignite bed is thicker or where more than one bed has
burned, the heat has been so intense that the rocks have been melted
into a sort of slag or scoria, good examples of which will be seen
farther west. When a thick bed of coal or lignite burns, the overlying
material settles, and frequently great cracks are formed, out of which
issue smoke and steam from the burning lignite below. An example of such
cracking is shown in Plate IV, B (p. 52).
As the lignite retains much of its original woody
character it ignites readily when dry, and the fires may have begun in
any one of several ways. For instance, they may have been started by
prairie fires, by lightning, by camp fires, or even by alternate wetting
and drying, which causes very rapid oxidation and a consequent rise in
temperature. The last suggestion may appear improbable, but the writer
has seen a large pile of low-grade coal take fire after a rain and be
entirely consumed. The burning of a dump of waste material is a common
experience at many mines, and rarely is the fire started by man. Once
started, the burning of a coal bed will continue as long as air is
available. Near the outcrop the coal burns readily, but back under cover
the amount of air is not sufficient for combustion and the fire dies
out. Many coal and lignite beds are burning to-day, and it is possible
that one may be seen in the badlands called Pyramid Park, farther west,
near Sully Springs, N. Dak.
|
PLATE IV.A (top), BADLANDS IN THE VICINITY
OF MANDAN, N. DAK. These are not so rugged or picturesque as those to be
seen further west, where the precipitation is less. B (bottom,)
CRACKS PRODUCED BY THE BURNING OF A BED OF LIGNITE. Where a bed of
lignite many feet thick burns, the sandstone or shale overlying it
breaks down, forming large cracks through which steam and smoke issue as
long as the lignite is on fire.
|
Glenullen.
Elevation 2,090 feet.
Population 921.
St. Paul 509 miles.
|
The success of dry farming has led to the settlement
of almost all of western North Dakota, and towns have sprung up along
the railroads like magic. Glenullen is one of the newer towns, and from
its general appearance it is evident that in this region dry farming is
a success. Although grassy slopes or fields of grain predominate in this
part of the State, the appearance at intervals of bare knobs or buttes
indicates that everywhere under the surface are the same lignite-bearing
rocks that were seen farther east, those of the Fort Union formation.
These rocks, when searched carefully, are found to contain many
impressions of fossil leaves which show that the sands and muds, now
hardened to rock, were laid down in shallow water near a land surface
upon which trees and smaller plants grew in abundance. Where the land
was swampy the vegetation was covered as it fell and in time was changed
into lignite. In this part of the country the lignite is generally
concealed by the grassy slopes, but farther west many beds are exposed
in the hillsides. The fossil plants of the Fort Union formation indicate
very different conditions during the Eocene epoch from those which
prevail to-day. A brief sketch of the flora, together with an
interpretation of its meaning, is given below by F. H.
Knowlton.1
1As the traveler rides mile after mile
over the almost barren plains of Dakota and eastern Montana and sees
them shimmering in the heat of midsummer, with only an occasional
cottonwood or box elder along the streams or sprawling, stunted junipers
on the rocky slopes to relieve the monotony, he finds it difficult
indeed to realize that this country once supported a vegetation as
luxuriant and varied as that now growing in any of the Southern States.
However, it will require only a brief examination of the rocks to
convince him of the truth of this statement, as they contain in many
places the remains of vast numbers of branches, leaves, fruits, and even
a flower here and there. Fossil remains have aptly been called the
illustrations in the world's history, of which the pages are the layers
of rock forming the outer part of the crust of the earth. It is the
purpose now to look at a few of these illustrations and by this means
restore in imagination the ancient vegetation.
Fossil plants are very abundant in the Fort Union
formation and are found in the sandstone, in the harder concretions or
lenses, and in the clay between the sandstone beds. Most of them,
especially those in clay, are preserved with remarkable fidelity. About
300 species have been described, and it is probable that the total
number may be found to reach 500 or more species.
Beginning with the plants of the most simple
structure, we may first consider the ferns. One of the most abundant and
widespread forms, having been found at hundreds of localities, is the
beautiful sensitive fern Onoclea. This can not be distinguished from the
living species, which now grows so widely over eastern North America.
There is also a chain fern (Woodwardia) very closely resembling a living
species, and numbers of others that are more or less closely related to
forms now growing in the Eastern States.
The conifers, though not numerous in species, were
very abundant and were of the types that must have been of rather
imposing appearance. The most abundant form is a redwood (Sequoia) that
is very closely related to the redwood which is now confined to the
coast regions of California. There was also another Sequoia nearly
related to the big trees of California, but it was not so abundant as
the other form. With these was a cypress (Taxodium) that must have been
much more beautiful than the common cypress of our southern swamps.
There was also a cedar (Thuya), with delicate juniper-like foliage, that
must have been very numerous, as its fossil remains are widespread in
the Fort Union formation. In strange contrast to these conifers is what
appears to have been the immediate ancestor of the celebrated ginkgo, or
maiden-hair tree of China and Japan. The ginkgo has had in many ways a
more wonderful geologic history than any other tree now living, as it
has come down to us practically unchanged from earliest Mesozoic time.
It apparently saw its heyday during what is known as the Jurassic period
(see table on p. 2), when it was widely spread from the Arctic regions
over most of the globe, but since that time it has been gradually
dwindling until it is now represented by a single living species in
Japan and China. It is regarded as a sacred tree in the Far East and as
such is planted about the temples and sanctuaries, but there is great
doubt as to its existence in a truly wild state. It is not likely to
become extinct, however, for its fascinating history and curious
fernlike foliage (see fig. 6) have made it of so great interest that it
has been extensively planted in many parts of the world, notably
southern Europe and eastern United States. It is a familiar shade tree
on the streets of Washington, D, C.
|
FIGURE 6.Ginkgo leaf.
|
Among the so-called higher flowering plants there
were many grass and sedge-like plants during Fort Union time, but none
that were very conspicuous or otherwise remarkable. Other
monocotyledonous plants included a fan palm with leaves that must have
been 5 or 6 feet across, which once grew along the lower reaches of
Yellowstone River in Montana, as shown on Plate XI, B (p.
75).
The plants with deciduous leaves (dicotyledons)
flourished in great numbers in Fort Union time, as they do now. They
included trees of many kinds, shrubs, vines, and probably herbs of more
humble growth. Among the trees one of the most abundant types as regards
kinds as well as individuals was the poplar (Populus). These were of an
ancient type, with small rounded or heart-shaped leaves, and were most
closely related to the living quaking aspen. Of the willow several
species are known. Oaks of several kinds were present, as well as two
species of hazelnut, both of which are still living in the eastern
United States and Canada. Walnut, allied to our common black walnut, was
present, together with sycamores so like the living species as to be
separated with difficulty. Figs were present, though not so numerous in
North Dakota as they were in other areas where the same formation
prevails, notably in Colorado. There were also elms, maples, birches,
alders, dogwoods, hickories, box elders, buckthorns, viburnums, wax
berries, witch-hazels, horse-chestnuts, bittersweets, and many that are
without common names.
From this abundant flora it is evident that what is
now an almost treeless plain was then covered with splendid forests of
hardwoods, interspersed with scattered conifers and ginkgos. From the
presence of numerous and in many places thick beds of lignite it is
clear that there were great swamps, and that these must have continued
with but little change for long periods of time. It has been estimated
that the product of heavily timbered woodland, when compressed to the
specific gravity of coal, would only amount to about one-fourth of an
inch in thickness during a century. If this statement is even
approximately correct, it is easy to calculate that a 4-foot bed of coal
must have required about 20,000 years for its accumulation.
Except for the presence of palms and an occasional
fig, it might be presumed that the climate was not greatly different
from that now prevailing on the Atlantic slope of North
Americathat is, cool temperate. The palms which are found in the
lower part of the formation imply, so far as the present distribution of
palms indicates, a somewhat warmer climate, just as the numerous thick
beds of lignite throughout the formation imply long-continued marsh
conditions.
The railway gradually ascends the valley of Muddy
Creek, and if the traveler is not looking carefully he will cross the
divide and enter the valley of Knife River without being aware that he
has passed out of the valley in which he has been traveling from Almont.
As a matter of fact the two valleys are continuous, and it seems
probable that originally the drainage from the vicinity of the summit at
Antelope came into Muddy Creek, but that some change has occurred by
which the drainage about Hebron has been turned northward into Knife
River. The details of this change have not been worked out, but it was
doubtless caused by glaciers which crossed Missouri River and extended
to the southwest as far as this valley, damming the streams and
compelling them to find new outlets.
Hebron.
Elevation 2,180 feet.
Population 597.
St. Paul 522 miles.
Antelope.
Elevation 2,435 feet.
St. Paul 531 miles.
|
Hebron, one of the new towns of western North Dakota,
is the center of a prosperous agricultural district and is noted for the
manufacture of fire and pressed brick, the clay for which is derived
from the Fort Union formation. The bed of clay utilized is at least 50
feet thick. Beyond Hebron the railway follows the broad, open valley of
Knife River to its head, where there is a steep climb to the summit of
the dividing ridge between that stream and Heart River on the southwest.
The highest point is reached a short distance beyond Antelope, where a
good view can be obtained of the upland surface of this part of North
Dakota. The surface is gently undulating, but here and there on the
principal divides there is a high knob that has not been reduced by
erosion to the general level. The sides of these knobs are generally
bare, and they have been sculptured by the rain, the frost, and the wind
into most beautiful and intricate forms. (See Pl. V, p. 53.)
|
PLATE V.A (top), B (bottom), EROSION FORMS
OF NORTH DAKOTA. As soon as the turf is removed from the sides of the
ridges and hills the slopes are cut rapidly by the rain. Each little
trickle of water cuts a hole vertically through the sand or clay,
producing a surface which, when seen from above, resembles a gigantic
sponge. Its general appearance is shown in the upper view. When
erosion has reached a more advanced stage. The hill may be reduced to
an isolated butte, as shown in the lower view, and the sides are covered
with the most delicate tracery.
|
Richardton.
Elevation 2,487 feet.
Population 647.
St. Paul 536 miles.
Gladstone.
Elevation 2,373 feet.
St. Paul 550 miles.
Lehigh.
Elevation 2,372 feet.
St. Paul 556 miles.
|
West of the summit the surface descends to
Richardton, the largest town between Mandan and Dickinson. This town has
grown up as a result of the success of dry farming. It is attractively
situated on the rolling upland plateau of western North Dakota and has
abundant supplies of clay and lignite ready to be utilized in the
building of a large town.
From Richardton the railway winds through a gently
rolling country and gradually descends to Heart River, which is reached
at the village of Gladstone. Here the railway is in the same valley that
it left a few miles west of Mandan, but the climb out of the valley and
the descent back in again saved the railway several miles of track,
although it involves some rather heavy grades.
The valley of Heart River is comparatively narrow and
is bounded by steep bluffs in which the rocks of the Fort Union
formation are well exposed. At the little village of Lehigh (see Lehigh.
sheet 9, p. 64) a lignite mine has been in operation for a number of
years. The bed of lignite, which is from 6 to 7 feet thick, lies
horizontal and is reached by an entry driven into the hillside. The
workings extend 2,000 feet or more into the hill, and the lignite is
brought to the tipple in cars hauled by horses.1
1The lignite as it comes from the mine
contains about 42 per cent of moisture, but on drying parts with most of
it, the percentage being reduced to about 10. The composition of an
average sample of this lignite after it had been dried at a temperature
of 86° to 95° F. until the sample attained a constant weight is
as follows: Moisture, 9.1 per cent; volatile matter, 38.2 per cent;
fixed carbon, 42.1 per cent; ash, 10.6 per cent. Its heating value is
9,640 British thermal units. A British thermal unit is the amount of
heat required to raise 1 pound of water 1° F., or it may be
considered as the ratio of weight of coal burned to the weight of water
that will be raised 1° by the burning of the coal. Thus the burning
of 1 pound of air-dried Lehigh lignite would raise the temperature of
9,640 pounds of water 1°. Coals range in their heating value from
the amount given in this analysis, which is about the lowest, to as much
as 15,500 British thermal units, a value shown by the best Pocahontas
and New River coals of West Virginia.
bul/611/sec9.htm
Last Updated: 28-Mar-2006
|
