Minuteman Missle
Historic Resource Study
|
|
|
Section II — Life on the South Dakota Plains: Before, During, and After Minuteman
|
Chapter 4:
Chapter 4: Delta-01 and
Delta-09 (1960s—80s) (continued)
|
|
Plate 41. Main entrance and security bay
of Launch Control Facility Support Building, Delta-01 (Photograph by
Mead & Hunt)
|
|
|

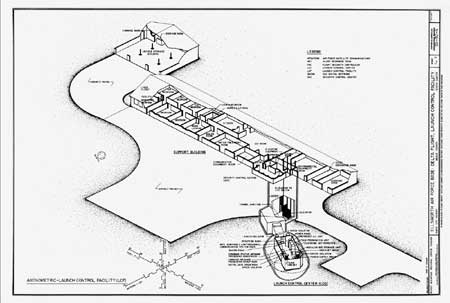

Plate 42. Interior plan view of Delta-01
(Library of Congress, Prints and Photographs Division, Historic American
Engineering Record, Reproduction Number HAER SD-50-A-sheet 1) (click
on image for an enlargement in a new window)
|
|
|

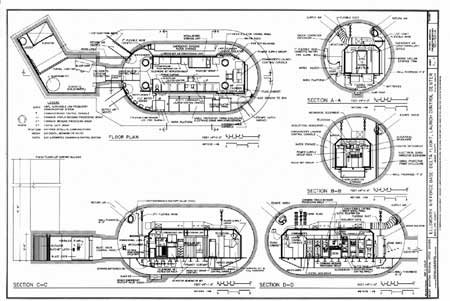

Plate 43. Line drawings of interior of
Delta-01 Launch Control Center (Library of Congress, Prints and
Photographs Division, Historic American Engineering Record, Reproduction
Number HAER SD-50-A-sheet 2) (click on image for an enlargement in a
new window)
|
|
|
Plate 44. Interior side of blast door,
Delta-01 (Library of Congress, Prints and Photographs Division, Historic
American Engineering Record, Reproduction Number HAER SD-50-A-56)
|
