CHAPTER 3:
OVERWASH STUDIES AT CAPE LOOKOUT NATIONAL SEASHORE (continued)
Transects across the Codd's Creek salt marsh that
formed where overwash deposits went into the lagoon are shown in Figs.
26 and 27. This new, expanding marsh developed in less than a decade and
is much more productive than the older, eroding marshes that adjoin it.
Tidal water moves freely into the new Spartina alterniflora (salt
marsh cordgrass) marsh that is growing here at a lower elevation than
the older, and hence higher, marsh nearby. The presence of beach shells
under this luxuriant marsh grass is clear evidence that the substrate
originated from overwash.
|
Fig. 26. Differences between old salt
marsh surfaces and recent overwash deposit. (A) View from the end
of Codds Creek Transect 1, showing eroded peat around the marsh and
short Spartina alterniflora. The tall grass at location 2 on the
right is Spartina growing in what was part of the creek before
overwash filled it during the late 1950s. (B) Transect 2 was made
through this remarkably tall and productive stand of Spartina
alterniflora. Here the grass is nearly 2 m tall and is typical of
new marsh growth on recent overwash deposits.
|
|

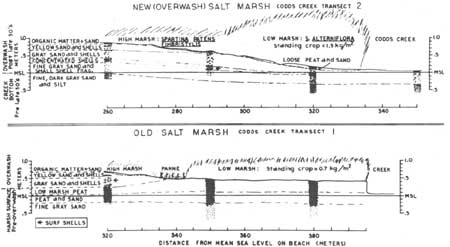

Fig. 27. Diagrammatic cross-section
which contrasts the new salt marsh on Transect 2 with the older one on
Transect 1. In Transect 2, the overwash created a gradually sloping
surface into the creek, which was ideal for colonization by S.
alterniflora. The marsh is readily flooded by the tides and is of
great value to the estuary. Waves are easily dissipated in the grass and
no erosion occurs. The marsh can also advance further into the creek on
the sediments. It is tall, thick, and highly productive, with nearly
three times the standing crop of the nearby old marsh. In Transect 1,
the marsh substrate is peat and the plants are of the short form. Waves
erode the edge of the marsh peat and the grass cannot invade the creek
bottom. Several overwashes may have been involved in creating the
substrate for the new marsh. The original creek bottom was very fine
sand mixed with silt, and is distinct from the overlying oceanic
sediments. The fine gray sand and shells may have come from an earlier,
less severe overwash that preceded the major deposition on which the
marsh now grows. Gray sand indicated reducing conditions and iron
sulfides. Refer to Fig. 21E for the location of these transects.
(click on image for an enlargement in a new window)
|
The photographs (Fig. 21) also demonstrate that the
island retreats as a unit; it apparently maintains the minimum width
which will allow storm waves to dissipate the brunt of their energy
before getting to the dune line. Waves churn across this berm,
demolishing any dunes too close to the beach, and then flow more quietly
between the dunes into the grasslands behind them. Energy is further
dissipated in the grass lands, where the flow slows down quickly. Thus,
most of the sand load settles out in the dunes and grassland.
Since we began our observations, several storms have
struck the islands, and in each case sand was deposited as expected.
Hurricane Ginger, in the fall of 1971, was not a really powerful
hurricane, but it did considerable damage to some developed beaches and
put the Cape Lookout islands under water (Dolan and Godfrey in press).
On these islands, instead of damage, there was a definite build-up
around elevation markers at Codd's Creek (Fig. 28). On a rather narrow
section of Core Banks opposite Atlantic, N.C., as much as 50 cm of sand
were deposited on grasslands about 150 m back from the beach (Figs. 29
and 35).
|
Fig. 28. Effects of Hurricane Ginger, 30
September 1971, on Core Banks at Codds Creek. The hurricane crossed Core
Banks between Drum inlet and Portsmouth Island. Storm surge was 2.5 m
above sea level, with winds of 100 kph at Cape Lookout. The banks were
completely inundated, with about 0.8 m of water over the backshore at
the dune line. (A1) Codds Creek transect, shown by dotted line,
before Hurricane Ginger. (A2) Codds Creek transect after Ginger.
(9 October 1971.) Very little evidence of the storm passage can be seen
from the air, illustrating the ability of these islands to withstand
storm surges. (B1) View toward the ocean end of the transect,
with plastic pipe benchmark CC3 visible in the foreground, (August
1971.) (B2) After Ginger, fresh sand was pushed up over the
beach, burying CC3 and covering the sea oat seedlings in the old
driftline. The beach face was flattened and the berm crest moved back
about 40 m, although the location of m.s.l, did not retreat, (C1)
Close-up of benchmark CC3 before Ginger, August 1971. The shell pavement
on the island surface is readily visible in this view, (C2)
Benchmark CC3 after Ginger. The sand level was raised 29 cm around this
pipe. The deposits contain fine sand and shells, and the surface no
longer has a shell pavement. (D1) View along the transect toward
Codds Creek before Ginger, showing the line of benchmark pipes 30 m
apart at which the cores shown in Fig. 27 were taken, and the general
features of the overwash pass, dune system, and grasslands. CC4 is in
the foreground. (D2) Transect 1 after Ginger. The drift line in
dunes at the left shows that this area was totally submerged. The fine
texture of the new deposit contrasts with the old surface. The sand
surface at CC4 was raised 14 cm. At CC5 near the edge of the grassland
it rose 19 cm, while at CC6, the third core back, which was in a hollow
in the overwash pass, the level dropped 9 cm. At CC7,just visible in the
distance, there was no change. The vegetation was unharmed by the storm
surge, and only before and after measurements really show what
occurred.
|
|
Fig. 29. Effects of Hurricane Ginger on
Core Banks, where the storm crossed the Outer Banks causing heavy
overwash just south of the Old Atlantic Coast Guard Station. (A1)
View looking south of the berm and dune line in June 1971 (photo taken
with a wide-angle lens). (A2) The same general area following
Hurricane Ginger. The berm crest moved back and edges of the dunes along
overwash passes were eroded. Even when the photo was taken in October, a
new berm was building on the beach (photographed with a normal lens).
(B1) An old overwash pass before Gingerview is across the
island from the view in Fig. 29 (photo taken with a wide-angle lens).
(B2) The same area following Ginger. The dunes near the telephone
pole were eroded, while the low dunes on the berm, seen as dark patches
on the berm in Fig. 29, B1 were completely buried; just the culms
of the grasses are visible (photographed with a normal lens).
(C1) View across Core Banks toward the beach from the opposite
side of the area in B1 before the storm. (C2) Ginger left
a major overwash deposit on what was once a grassland in a former
overwash pass. (D1) The overwashed area in C as seen from
a dune in June 1971. The grassland was relatively open, although patches
of dense vegetation were present. (D2) After Ginger, the new sand
at the end of the overwash deposit was 50 cm (20 in) deep in places. Not
all the grass was flattened; some Spartina patens is protruding
from the sand. In a short time, the buried grass will recolonize the new
surface as shown in Fig. 22. The view here is slightly to the left of
that in D1; the telephone pole on the right in D1
corresponds to the nearest pole on the left in D2.
|
When storm waves strike directly against a stabilized
dune line, scarping such as that shown in Fig. 30 is the result. Such
erosion may occur when a beach retreats up to a natural or artificial
continuous dune line, or when dune lines are built too close to the
beach. In either case, wave energy is expended directly against the dune
base, undermining the dune and causing the front of the structure to
slump. No amount of grass on the dune can prevent this.
|
Fig. 30. A tropical depression in the
fall of 1970 crossed a stabilized section of Bogue Banks, with the
results we have learned to expect on a stabilized barrier island. The
beach was cut back considerably and the dune face badly eroded. Waves
from the storm dissipated their energy directly against the dunes and
what berm existed was cut away. High tide now reaches the dune line.
Contrast this scene with those in Fig. 29.
|
Occasionally, stabilized dune lines are broken by
storm waves and an overwash fan is formed as sand from the dune is
carried back. Figure 31 shows a once-continuous man-made dune on Core
Banks which has been broken by storm water. Here, however, the damage
was only to the artificial dune itself, since the sand was caught and
colonized by grasses behind the dune. It is when there are developments
behind such a continuous dune that difficulties result. Figure 32 shows
the results of overwash in an area where cottages were built right
behind the barrier and are now subject to flooding. Such breaching and
flooding can be expected; they are part of the natural pattern of
retreat.
|
Fig. 31. The same storm drove water over
the beach on Core Banks, with no damage except to experimental dune
lines built with beachgrass on northern Core Banks; this straight dune
line was continuous and storm surges piled up against it until a weak
area broke through. Sand from the dune line was spread out in back as an
overwash fan.
|
|
Fig. 32. Dune breaks and overwash caused
considerable damage to cottages built too close to the beach. A storm on
28 March 1971 broke over the low dunes at Avon, a town within the
boundaries of Cape Hatteras National Seashore, causing what is generally
termed damage, although it was a predictable and natural event.
(Photo by Cape Hatteras National Seashore Staff.)
|
Contrasting with the erosion and breaching of
stabilized dunes is the pattern seen on islands with natural,
discontinuous dune fields. Here, overwashes carry sand through the dune
fields and create fans in low areas behind, as shown in Fig. 33 on
Shackleford Banks. This fan is typical of natural beaches; when
Hurricane Ginger swept across the Outer Banks, many such fans were
produced on Core Banks (Fig. 34). A summary of the overwash process is
shown in Fig. 36.
|
Fig. 33. Tropical storm Doria, in August
1971, drove storm surges across Shackleford Banks. The dune line, while
substantial, has breaks and passes. All along this beach, classic
overwash fans were laid out between the dunes. The edge of this deposit
was about 17 cm thick. (Telephoto view from a high rear dune appears to
compress the distance between fan and ocean.)
|
|
Fig. 34. The same part of Core Banks as
shown in Fig. 29, after Hurricane Ginger. The photographs in Fig. 29
were taken opposite the number "34." Contrast this view with Fig. 32. On
the undeveloped beach. overwash builds up the inner part of the island.
Past overwash deposits are clearly visible in this view. The area is
just south of the view of the Coast Guard Station in Fig. 23. In
December 1971, the Corps of Engineers cut a new inlet through the narrow
neck near the top of the photograph. (See Fig.
10D.)
|
|

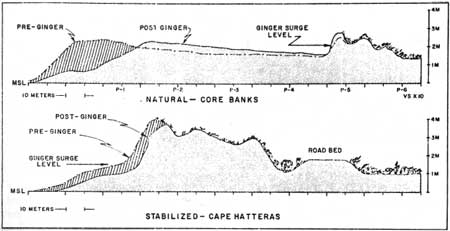

Fig. 35. The effects of Hurricane Ginger
in Cape Lookout (Core Banks) and Cape Hatteras National Seashores are
contrasted in this diagram from Dolan and Godfrey (in press). On Core
Banks, the berm crest was knocked back, and the beach face flattened;
overwash raised the backshore. Following the storm, the berm crest moved
seaward and 10 months later all that was lost in the storm was
eventually regained; see profile in Fig. 25 which shows the same
transect in more detail. Dunes were actually raised by wind blowing the
new sand into the dune line. On the stabilized section, the whole beach
system was cut back, and the berm and dune line severely eroded, with
the inevitable alarm and call for erosion control. The contrast between
profiles of stabilized and natural beaches is in itself revealing.
(click on image for an enlargement in a new window)
|
|
Fig. 36. Diagrammatic interpretation of
the overwash process and recovery of a low barrier island such as Core
Banks, (From Godfrey 1970.) (1) Cross-section of a low
barrier island at any starting time. (2) A severe storm will push
high tides over the beach berm; as the water flows back across the
island it carries sand into the grasslands. (3) A second, less
severe storm carries a smaller quantity of sand onto the earlier
deposit. Abnormally high tides have pushed a little sand over the edge
of the berm. Grass has pushed up through the earlier layer. The front of
the island has retreated slightly. Following the storm, the berm will
build seaward, (4) A severe storm inundates the island and adds a
great deal of sand to the earlier layers. Old dunes have been knocked
down and the sand spread out, The beach front has retreated
substantially. In some places, the berm front may be lowered as sand is
removed. (5) After a few years of relative storm quiet, the
island surface has completely recovered, although the vegetation zones
have been displaced slightly. Low salt marsh has grown up on the new
base in the sound, the former low marsh has become high marsh, and the
sand flat has extended into the old high marsh border.
|
chap3c.htm
Last Updated: 21-Oct-2005
|
