Chapter III: Archeological Record
(continued)

USS ARIZONA

Site Description and Analysis (continued)

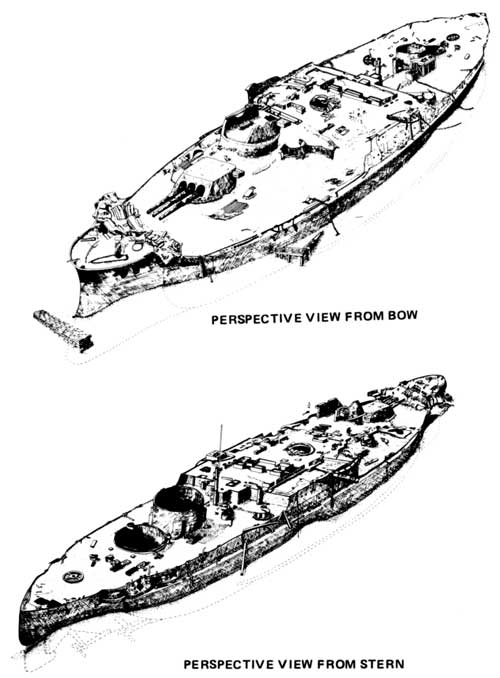

Figure 3.7. These artistic renderings by Jerry Livingston portray the ship remains from different oblique angles.

Figure 3.8.A This set of drawings was developed from data obtained in the intense underwater mapping sessions that took place in 1984. (click on image for a larger size ~350K)

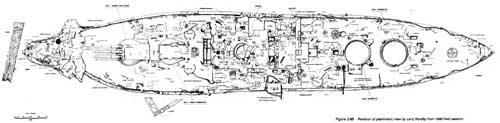

Figure 3.8.B Revision of planimetric view by Larry Nordby from 1986 field session. (click on image for a larger size ~210K)
