Fort Vancouver
Historic Structures Report 		NPS Logo
Volume I

PLATES

fort structures
Plate LXXXV. Double Door, H. B. C. Warehouse, Lower Fort Garry. (National Park Service photograph by J. A. Hussey, September, 1967.)

fort structures
Plate LXXXVIII. "Athabasca Building," H. B. C. Warehouse, Port Edmonton, Alberta, c.1900 (?).

(Alberta Government Photograph, from the Ernest Brown Collection, Department of Industry and Development, Edmonton, Alberta. Neg. No. B1062.)

fort structures
Plate LXXXIX. Tearing Down the "Athabasca Building," Fort Edmonton, October 14, 1915. (Courtesy of the Glenbow-Alberta Institute, Calgary, Alberta. File No. NC-6-1544.)

fort structures
Plate XC. Warehouse Window, York Factory, c.1970. (Courtesy of Technical Services Branch, Department of Indian Affairs and Northern Development, Ottawa.)

diagram

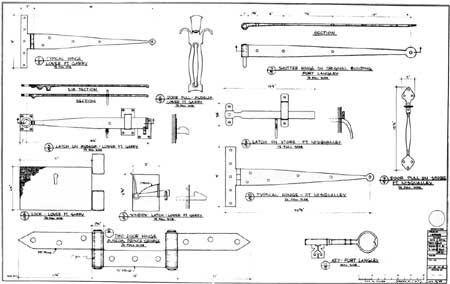

Plate XCI. Typical Hardware, H. B. C. Structures, Sheet 5. (National Park Service drawing by F. Mehring, based on field data by A. L. Koue, April, 1969.) (click on image for an enlargement in a new window)

diagram

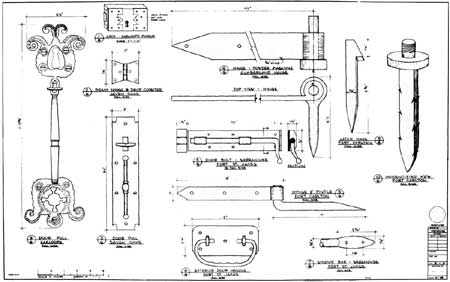

Plate XCII. Typical Hardware, H. B. C. Structures, Sheet 6. (National Park Service drawing by R. Mehring, based on field data by A. L. Koue, April, 1969.) (click on image for an enlargement in a new window)
