Fort Vancouver
Historic Structures Report 		NPS Logo
Volume I

PLATES

diagram

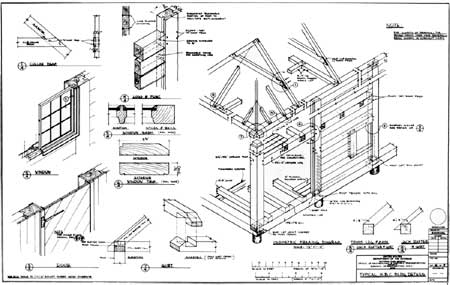

Plate LXXXI. Typical H. B. C. Building Details, Warehouse, Fort St. James, Sheet 4. (National Park Service drawing by Architect F. Mehring, based on measurements by A. L. Koue, September, 1967.) (click on image for an enlargement in a new window)

fort structures
Plate LXXXII. Eaves Detail, Warehouse, Fort St. James. (National Park Service photograph by J. A. Hussey, September, 1967.)

fort structures fort structures
Plate LXXXIII. One-Half of Trade Shop Double Door, Lower Fort Garry, Manitoba. (National Park Service photograph by J. A. Hussey, September, 1967.)
fort structures
Plate LXXXVI. Shutter on Upper Story Window on Only Surviving H. B. C. Building, Fort Langley, B. C. (National Park Service photograph by A. L. Koue, September, 1967.) Plate LXXXVII. Shutter on Lower Story Window, Surviving Original H. B. C. Structure, Fort Langley.

The hinges are 13-1/2 inches long overall.

(National Park Service photograph by J. A. Hussey, September, 1967.)

fort structures
Plate LXXXIV. Main Door, H. B. C. Warehouse, Fort St. James. (National Park Service photograph by J. A. Hussety, September, 1967.)
